BarcodeDocumentProcessor Configuration File

All settings of the program are specified in the configuration file (config.xml). You can specify the path to the file in the command line. For example

BarcodeDocumentProcessor /config:"c:\config.xml"

If you specify no name in the command line, the program will search the folder where it is located for the file config.xml.

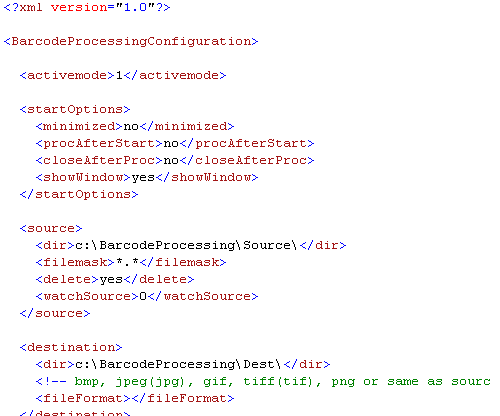

The configuration file is an XML file (see example).

Barcode Images Decoder. Configuration File.

It has the following nodes.

//activemode

The mode to process documents in.

See:
Mode 1
Mode 2
Mode 3

Possible Values

1, 2, 3, ...

Example

<activemode>2</activemode>

//startOptions/minimized

Once launched, the program will be minimized to the tray.

Possible Values

yes, no

Example

<minimized>no</minimized>

//startOptions/procAfterStart

Start processing right after the program is launched.

Possible Values

yes, no

Example

<procAfterStart>no</procAfterStart>

//startOptions/closeAfterProc

Close the program after processing is over.

Possible Values

yes, no

Example

<closeAfterProc>no</closeAfterProc>

//startOptions/showWindow

Show the program window or not.

Possible Values

yes, no

Example

<showWindow>yes</showWindow>

//source/dir

The source folder where the image files to be decoded and processed are located.

Possible Values

directory path

Example

<dir>c:\BarcodeProcessing\Source\</dir>

//source/filemask

The mask for selecting files.

Possible Values

File name, which can include wildcard characters, for example, an asterisk (*) or a question mark (?).

Example

<filemask>*.*</filemask>

//source/delete

Delete source files once they are processed. A file will be deleted only if it will be successfully saved in the destination folder.

Possible Values

yes, no

Example

<delete>yes</delete>

//source/watchSource

The interval (in seconds) the source folder should be checked at. If a file appears in the source folder, it will be processed. If it is set to 0, the source folder is not monitored.

Possible Values

interval in seconds

Example

<watchSource>0</watchSource>
or
<watchSource>10</watchSource>

//destination/dir

The destination folder files will be saved to after they are processed.

Possible Values

directory path

Example

<dir>c:\BarcodeProcessing\Dest\</dir>

//destination/fileFormat

The image format the destination file should be saved in. If it is empty, the source file format is used. If the destination file consists of multiple pages, it is always saved in the tiff format.

Possible Values

bmp, jpeg, jpg, gif, tiff, tif, png or empty

Example

<fileFormat></fileFormat>
or
<fileFormat>jpg</fileFormat>
or
<fileFormat>gif</fileFormat>
or
etc.

//log/saveLog

Save the log file or not.

Possible Values

yes, no

Example

<saveLog>yes</saveLog>

//log/fileName

The full name of the log file (including the path).

Possible Values

full file name

Example

<fileName>c:\BarcodeProcessing\Log\log_20080511.txt</fileName>

//log/fieldSeparator

The character separating values in the log file.

Possible Values

any char

Example

<fieldSeparator>;</fieldSeparator>

//errDir

The path to the error folder. Files with errors that have not been decoded will be saved to this folder.

Possible Values

directory path

Example

<errDir>c:\BarcodeProcessing\Error\</errDir>

//fileWithoutBarcode/action

What to do with a file that contains no barcode.

Possible Values

dest - move the file to the destination folder
error - move the file to the error folder
delete \96 delete the file from the source folder
nothing \96 do nothing with the file

Example

<action>error</action>

//fileWithoutBarcode/replaceExisting

If the destination or error folder already contains a file with no barcode that has the same name, this parameter determines whether this file should be replaced or a sequence number should be added to its name.

Possible Values

yes, no

Example

<replaceExisting>no</replaceExisting>

//fileWithBarcode/replaceExisting

Similar to the previous parameter, but it is applied to files successfully processed and saved to the destination folder.

Possible Values

yes, no

Example

<replaceExisting>no</replaceExisting>

//fileSequenceSeparator

The character that will be added before the sequence number.

For example,
etc.

Possible Values

char

Example

<fileSequenceSeparator>_</fileSequenceSeparator>

//barcodeParameters/barcodeTypes

The enumeration of barcode symbologies that should be decoded. Symbologies must be separated by the ; character.

Possible Values

Code128, Code39, Interleaved25, Industrial25, EAN-13, EAN-8, UPC-A, UPC-E, Codabar, Code11, PDF417, Linear-Undec, PDF417-Undec

Example

<barcodeTypes>Code128;Code39;Interleaved25;Industrial25;EAN-13;EAN-8;UPC-A;UPC-E;Codabar;</barcodeTypes>

//barcodeParameters/filter/regex

It contains regular expressions the barcode should correspond to. The barcode must correspond to any of these expressions. If the /filter node is empty, no barcodes are verified. If a barcode does not correspond to any of the regular expressions, it is considered as unrecognized.

Possible Values

regular expression

Example

<filter>
  <regex>\d{3}-\d{3}-\d{4}</regex>
  <regex>FH\d{3}-\d{3}-\d{4,6}</regex>
</filter>
That the barcode must be like 701-151-1409, FH104-151-04001, FH987-151-040012, etc.
<filter>
  <regex>.*</regex>
</filter>
or
<filter>
</filter>
means any barcode

//barcodeParameters/barcodeLinearUndec

The name that a file with an unrecognized barcode will have. Our barcode decoding SDK allows you to detect barcodes that are similar to a barcode, but that have not been recognized for some reason.

Possible Values

file name

Example

<barcodeLinearUndec>Undecoded</barcodeLinearUndec>

//barcodeParameters/LinearFindBarcodesOnPage

How many barcodes to search for on each page.

Possible Values

1, 2, 3, ...

Example

<LinearFindBarcodesOnPage>1</LinearFindBarcodesOnPage>
